Olymtech fixed speed screw air compressor(belt driven/direct driven)

  • Origin: China
  • Stock: In Stock
  • Model Number: OLB/OLD series
  • Processing Time: 60 Days Days
    • Inquire Now

Supplier Info.

  • Location China
  • Employees Total
  • Annual Revenue

Product Description.

OLYMTECH Fixed Speed

OLB/OLD series

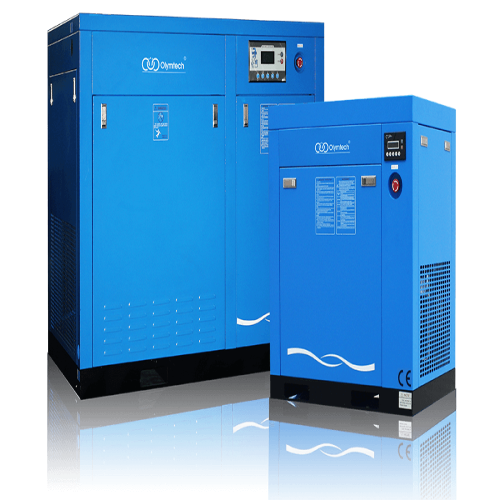

Olymtech fixed speed screw air compressor(belt driven/direct driven)

Main Features:
1. Reliable and stable quality, it is the classical model in the market
2. Suit for using in the heavy duty situation, can run at 24/7
3. No overheat on continuous 100% load is guaranteed
4. Low vibration and low noise
5. Lower maintenance cost

OLB SERIES
    Olymtech fixed speed screw air compressor (BELT DRIVEN)
Model  Max
    Working Pressure		 Capacity Motor Power Transmission Connection Net Weight  Dimension
    (Lx W x H)
-- bar psig m3/min CFM hp kw inch kgs mm
OL7.5CB-8 8 116 1.1 41 10 7.5 Belt   Drive G1/2'' 220 850x600x850
OL7.5CB-10 10 145 1.0 35
OL7.5CB-13 12.5 182 0.8 30
OL11CB-8 8 116 1.7 60 15 11 Belt   Drive G3/4'' 280 850x602x950
OL11CB-10 10 145 1.5 53
OL11CB-13 12.5 182 1.3 46
OL15-8 8 116 2.4 85 20 15 Belt   Drive G1'' 380 950x870x1230
OL15-10 10 145 2.2 74
OL15-13 12.5 182 1.7 64
OL18.5-8 8 116 3.0 106 25 18.5 Belt   Drive G1'' 500 950x870x1230
OL18.5-10 10 145 2.7 95
OL18.5-13 12.5 182 2.3 81
OL22-8 8 116 3.7 131 30 22 Belt   Drive G1'' 540 950x870x1230
OL22-10 10 145 3.2 113
OL22-13 12.5 182 2.7 99
OL30-8 8 116 5.0 177 40 30 Belt Drive G1-1/2'' 650 1150x990x1395
OL30-10 10 145 4.4 159
OL30-13 12.5 182 3.6 131
OL37-8 8 116 6.2 219 50 37 Belt   Drive G1-1/2'' 730 1150x990x1395
OL37-10 10 145 5.6 198
OL37-13 12.5 182 4.6 162
OL45-8 8 116 7.2 254 60 45 Belt   Drive G1-1/2'' 790 1150x990x1395
OL45-10 10 145 6.5 230
OL45-13 12.5 182 5.6 195
    ● According to the standard of GB19153-2009
    ● Compressor stage: one stage compression
    ● Exhaust temperature: ambient temperature + 15℃
    ● Power supply: 380v/50hz/3ph, 415v/50hz/3ph, 440v/50hz/3ph, 220v/60hz/3ph,   380v/60hz/3ph, 440v/60hz/3ph, 600v/60hz/3ph
    ● Please contact with us for any specification that is not within the above   mentioned standard





OLD SERIES
    Olymtech fixed speed screw air compressor (DIRECT DRIVEN)
Model  Max
    Working Pressure		 Capacity Motor Power Transmission Connection Net Weight  Dimension
    (Lx W x H)
-- bar psig m3/min CFM hp kw inch kgs mm
OL15D-8 8 116 2.4 84 20 15 Direct   Drive G1'' 520 1410x850x1135
OL18.5D-8 8 116 3.0 106 25 18.5 Direct   Drive G1'' 540 1410x850x1135
OL22D-8 8 116 3.6 127 30 22 Direct   Drive G1'' 560 1410x850x1135
OL30D-8 8 116 5.0 177 40 3307 Direct   Drive G1-1/2'' 700 1530x930x1255
OL37D-8 8 116 6.2 219 50 37 Direct   Drive G1-1/2'' 740 1530x930x1255
OL45D-8 8 116 7.6 353 75 55 Direct   Drive G1-1/2'' 800 1530x930x1255
OL55D-8 8 116 10.0 353 75 55 Direct   Drive G1-1/2'' 1180 1800x1125x1430
OL75D-8 8 116 13.0 459 100 75 Direct   Drive G2'' 1470 2000x1300x1600
OL90D-8 8 116 16.0 565 120 90 Direct   Drive G2'' 1950 2130x1400x1750
OL110D-8 8 116 20.0 706 150 110 Direct   Drive DN65 2450 2550x1550x1900
OL132D-8 8 116 24.0 848 180 132 Direct   Drive DN65 2500 2550x1550x1900
    ● According to the standard of GB19153-2009
    ● Compressor stage: one stage compression
    ● Exhaust temperature: ambient temperature + 15℃
    ● Power supply: 380v/50hz/3ph, 415v/50hz/3ph, 440v/50hz/3ph
    ● Please contact with us for any specification that is not within the above   mentioned standard
