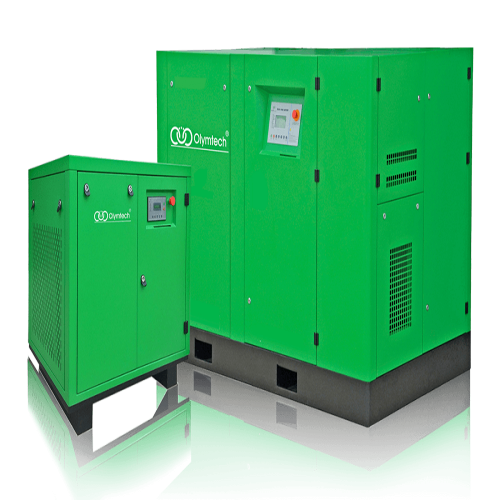

Olymtech OIL FREE water lubricated screw air compressor

  • Origin: China
  • Stock: In Stock
  • Model Number: CMB/CMBV series
  • Processing Time: 60 Days Days
    • Inquire Now

Supplier Info.

  • Location China
  • Employees Total
  • Annual Revenue

Product Description.

OLYMTECH 100% Oil Free

CMB/CMBV series
Olymtech OIL FREE water lubricated screw air compressor

Main Features:
1. 100% oil free, got the Germany TUV Class 0 certified
2. Reliable and stable quality, can run 24hours
3. Energy saving, VSD can be choose
4. Lowest maintenance cost
5. Low vibration and low noise
6. Easy operate, intelligent PLC controller

SPECIFICATION
CMB series
    Olymtech OIL FREE water lubricated screw air compressor (FIXED SPEED)
Model Maximum working
    pressure		 Capacity
    F.A.D		 Motor Power Pipe
    diameter of
    colling water
    inlet and outlet		 Quantily of
    cooling water		 Air outlet
    diameter		 Net
     weight		 Dimension
L*W*H
-- Bar m3/min HP KW T/h Inch Kg mm
CM08B(F) 8 1.15 10 7.5 3/4" 2 3/4" 630 1550*775*1445
10 1.02
CM11B(F) 8 1.55 15 11 3/4" 2.5 3/4" 650 1550*775*1445
10 1.32
12.5 1.02
CM15B(F) 8 2.40 20 15 1" 3.5 1" 900 1900*1000*1650
10 2.12
12.5 1.61
CM18B(F) 8 3.10 25 18.5 1" 4 1" 970 1900*1000*1635
10 2.62
12.5 2.13
CM22B(F) 8 3.50 30 22 1" 5 1" 1000 1900*1000*1635
10 3.13
12.5 2.61
CM30B(F) 8 5.00 40 30 1 1/2" 7 1 1/2" 1250 1900*1080*1430
10 4.20
12.5 3.18
CM37B(F) 8 6.10 50 37 1 1/2" 9 1 1/2" 1270 1950*1050*1720
10 5.22
12.5 4.81
CM45B(F) 8 7.30 60 45 1 1/2" 10 2" 1500 2200*1350*1530
10 6.13
12.5 5.65
CM55B(F) 8 9.60 75 55 1 1/2" 12 2" 1596 2200*1350*1530
10 8.60
12.5 7.42
CM75B 8 12.50 100 75 1 1/2" 18 2" 1790 2200*1350*1530
10 1.42
12.5 9.83
CM90B 8 16.30 120 90 1 1/2" 20 2 1/2'' 2250 2550*1400*1605
10 14.52
12.5 12.30
CM110B 8 19.40 150 110 1 1/2" 24 2 1/2'' 2270 2550*1400*1605
10 16.90
12.5 15.10
CM132B 8 22.21 180 132 2" 30 2 1/2'' 2330 2550*1400*1605
10 200.38
12.5 18.29
CM160B 8 28.85 210 160 3" 35 4'' 3660 3100*1700*2090
10 24.52
12.5 22.17
CM200B 8 36.63 260 200 3" 43 4'' 3690 3100*1700*2090
10 32.70
12.5 27.72
CM250B 8 42.88 325 250 3" 53 4'' 3900 3100*1700*2090
10 39.00
12.5 34.64
CM320B 8 59.10 425 320 4" 60 5'' 6350 3600*2800*2000
10 53.50
12.5 48.25
    ● According to the standard of GB19153-2009
    ● Compressor stage: one stage compression
    ● Exhaust temperature: ambient temperature + 15℃
    ● Power supply: 380v/50hz/3ph, 415v/50hz/3ph, 440v/50hz/3ph, 220v/60hz/3ph,   380v/60hz/3ph, 440v/60hz/3ph, 600v/60hz/3ph
    ● Please contact with us for any specification that is not within the above   mentioned standard





CMBV series
    Olymtech OIL FREE water lubricated screw air compressor (VSD)

Model Maximum working
    pressure		 Capacity
    F.A.D		 Motor Power Pipe
    diameter of
    colling water
    inlet and outlet		 Quantily of
    cooling water		 Air outlet
    diameter		 Net
    weight		 Dimension
L*W*H
-- Bar M3/min HP KW T/h Inch Kg mm
CM08BV(F) 8 0.45~1.15 10 7.5 3/4" 2 3/4" 637 1550*775*1445
10 0.41~1.02
CM11BV(F) 8 0.62~1.55 15 11 3/4" 2.5 3/4" 657 1550*775*1445
10 0.53~1.32
12.5 0.48~1.02
CM15BV(F) 8 0.96~2.40 20 15 1" 3.5 1" 907 1900*1000*1635
10 0.85~2.12
12.5 0.64~1.61
CM18BV(F) 8 1.24~3.10 25 18.5 1" 4 1" 993 1900*1000*1635
10 1.05~2.62
12.5 0.85~2.13
CM22BV(F) 8 1.40~3.50 30 22 1" 5 1" 1023 1900*1000*1635
10 1.25~3.13
12.5 1.04~2.61
CM30BV(F) 8 2.00~5.00 40 30 1 1/2" 7 1 1/2" 1300 1900*1050*1430
10 1.68~4.20
12.5 1.52~3.18
CM37BV(F) 8 2.44~6.10 50 37 1 1/2" 9 1 1/2" 1320 1900*1050*1430
10 2.09~5.22
12.5 1.92~4.81
CM45BV(F) 8 2.92~7.30 60 45 1 1/2" 10 2" 1569 2200*1350*1530
10 2.45~6.13
12.5 2.26~5.65
CM55BV(F) 8 3.84~9.6 75 55 1 1/2" 12 2" 1665 2200*1350*1530
10 3.44~8.6
12.5 2.97~7.42
CM75BV 8 5.00~12.5 100 75 1 1/2" 18 2" 1889 2200*1350*1530
10 4.57~11.42
12.5 3.93~9.83
CM90BV 8 6.52~16.3 120 90 1 1/2" 20 2 1/2'' 2356 2550*1400*1605
10 5.81~14.52
12.5 4.92~12.3
CM110BV 8 7.76~19.4 150 110 1 1/2" 24 2 1/2'' 2376 2550*1400*1605
10 6.76~16.9
12.5 6.04~15.1
CM132BV 8 8.88~22.21 180 132 2" 30 2 1/2'' 2522 2550*1400*1605
10 8.15~20.38
12.5 7.31~18.29
CM160BV 8 11.54~28.85 210 160 3" 35 4'' 3810 3100*1700*2090
10 9.81~24.52
12.5 8.87~22.17
CM200BV 8 14.65~36.63 260 200 3" 43 4'' 3910 3100*1700*2090
10 13.1~32.7
12.5 11.09~27.72
CM250BV 8 17.15~42.88 325 250 3" 53 4'' 4120 3100*1700*2090
10 15.6~39.0
12.5 13.87~34.64
CM320BV 8 23.64~59.10 320 420 4" 60 5" 6350 3600*2800*2000
10 21.40~53.50
12.5 19.30~48.25
    ● According to the standard of GB19153-2009
    ● Compressor stage: one stage compression
    ● Exhaust temperature: ambient temperature + 15℃
    ● Power supply: 380v/50hz/3ph, 415v/50hz/3ph, 440v/50hz/3ph, 220v/60hz/3ph,   380v/60hz/3ph, 440v/60hz/3ph, 600v/60hz/3ph
    ● Please contact with us for any specification that is not within the above   mentioned standard
