ORNADO PRO Belt Drive r screw air compressor

  • Origin: China
  • Stock: In Stock
  • Processing Time: 60 Days Days
    • Inquire Now

Supplier Info.

  • Location China
  • Employees Total
  • Annual Revenue

Product Description.

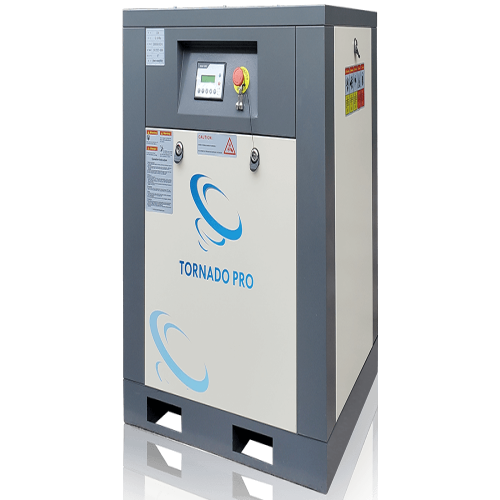

TORNADO PRO Belt Drive

Compressor factory belt drive good quality screw air compressor kompressor

Main Features:
1.Reliable air-end
2.IP54/F insulation level motor
3.High precision filter element
4.Intelligent control system with remind,record,remove,monitor function
5.With safety and protection operation
6.Suit for high temperature country
7.Low vibration and low noise

SPECIFICATION
TORNADO PRO belt drive
Model Max   Working Pressure Capacity Motor
    Power		 Connection Net
    Weight		 Gross
    Weight		 Dimension
    (L*W*H)
-- bar psig m3/min hp kw inch kgs kgs mm
TF5.5-7 7 102 0.83 7.5 5.5 Rp3/4 150 170 760*600*800
TF5.5-8 8 116 0.76
TF5.5-10 10 145 0.60
TF5.5-13 12.5 181 0.46
TF7.5-7 7 102 1.20 10 7.5 Rp1/2 195 223 800*700*930
TF7.5-8 8 116 1.10
TF7.5-10 10 145 0.95
TF7.5-13 12.5 181 0.80
TF11-7 7 102 1.65 15 11 Rp3/4 292 334 1080*750*1000
TF11-8 8 116 1.50
TF11-10 10 145 1.30
TF11-13 12.5 181 1.10
TF15-7 7 102 2.50 20 15 Rp3/4 311 353 1080*850*1000
TF15-8 8 116 2.30
TF15-10 10 145 2.10
TF15-13 12.5 181 1.90
TF18.5-7 7 102 3.20 25 18.5 Rp1 420 466 1080*850*1200
TF18.5-8 8 116 3.00
TF18.5-10 10 145 2.70
TF18.5-13 12.5 181 2.40
TF22-7 7 102 3.71 30 22 Rp1 443 489 1080*850*1200
TF22-8 8 116 3.60
TF22-10 10 145 3.20
TF22-13 12.5 181 2.70
TF30-7 7 102 5.30 45 30 Rp1 520 584 1200*1000*1500
TF30-8 8 116 5.00
TF30-10 10 145 4.50
TF30-13 12.5 181 4.00
TF37-7 7 102 6.80 50 37 Rp1-1/2 654 718 1200*1000*1500
TF37-8 8 116 6.20
TF37-10 10 145 5.60
TF37-13 12.5 181 5.00
TF45-7 7 102 8.00 60 45 Rp1-1/2 720 790 1500*1000*1330
TF45-8 8 116 7.30
TF45-10 10 145 6.60
TF45-13 12.5 181 6.00
  ● Please connect with us if any specification  is not in above table
