Production Profile:

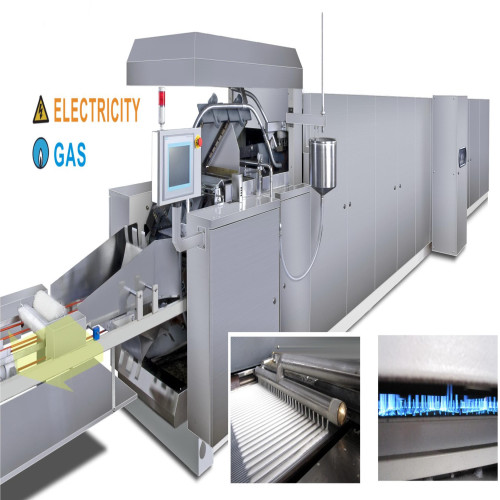

Oven has a good metal insulation structure, beautiful appearance, equipped with batter inject system, gas heating system, gas leakage alarm system, baking plate transmission and connection device. Burners with high energy-saving combustion technology, greatly improve the utilization rate of combustion. Double baking room insulation structure, making the baking plates in the upper and lower heating more efficient , and furnace temperature more uniform which is full metal structure with perfect heat preservation. Cover,doors and the oven roof are made of 304 stainless steel,with elegant appearance.Motors adopts SEW Germany, bearing adopts SKF France, PLC uses Mitsubishi Japan,and electrical compoents use international and Chinese famous brand.
Technology and function:
>>The baking machine has double-oven structure, making the heating effect in inner oven better and the working life of mechanical parts in external oven longer.
and control each mechanical parts, mixture volume and fire lighting.
>>The baking plate is made of grey cast iron, having longer working life, best use of thermal energy and even wafer pieces color.
>>Built-in biscuit waste cleaning device.
>>Baking temperature adjustable range : Normal to 180°C(adjustable)
>>Baking plate size : 470×325mm;470×350mm;500×350mm (optional)
>>Sheet thickness adjustment : 2.0mm~3.2mm（adjustable）
>>Wafer output : 50 grams~60 grams（adjustable）
Control panel & PLC: Japan Mitsubishi / Germany Siemens touching screen
>control the preset and actual temperature on the touch screen
digital dispalys for temperatures and number of wafer sheets per minute
>display / control /adjustment of the baking plate transporting speed and batter deposited status
>Servo control system is adopted to deposit batter on each baking plate
Combustion system
>Automatic top and bottom burner system with high voltage ignition
>Gas-safety device with main gas valve.filter.pressure regulator,gas pressure switch,air pressure switch,manometers and shut-off valves
>Combustion air fan for feed of the combustion
>Automatic temperature control system with radiation
>Reytex Probe in order to check the tempratures on baking plates
Technical Parameters for each complete line:
| Model
Plates |
Compressor Air
Consumption |
Baking Plate
Size (MM) |
Valid Cutting
Size (MM) |
Dimension
L×W×H:(M) |
Weight
(kgs) |
| 27 | 0.9 M3/Min
0.8Mpa |
470×325
470×350 500×350 |
455×315
455×340 485×340 |
5600×2.1×2.5 | 7800 |
| 33 | 6725×2.1×2.5 | 9000 | |||
| 39 | 7865×2.1×2.5 | 10500 | |||
| 45 | 9000×2.1×2.5 | 12000 | |||
| 51 | 10140×2.1×2.5 | 14000 | |||
| 63 | 12580×2.1×2.5 | 18000 | |||
| 65 | 12840×2.1×2.5 | 18580 | |||
| 75 | 14730×2.1×2.5 | 21000 |
